New launch Our new flagship diathermy
A 7-inch touch screen, automatic tuning, 100 built-in treatment protocols and full control from your phone with LCS MedLink. Everything clinicians trust in our diathermy range, rebuilt for the connected clinic.
7-inch touch screen
Auto + manual tuning
LCS MedLink app
Scroll to play the film
The same 27.12 MHz, 500 W / 1000 W therapy platform, now with a touch screen, automatic tuning, a four-times wider pulsed range and a companion app that turns every session into a record.

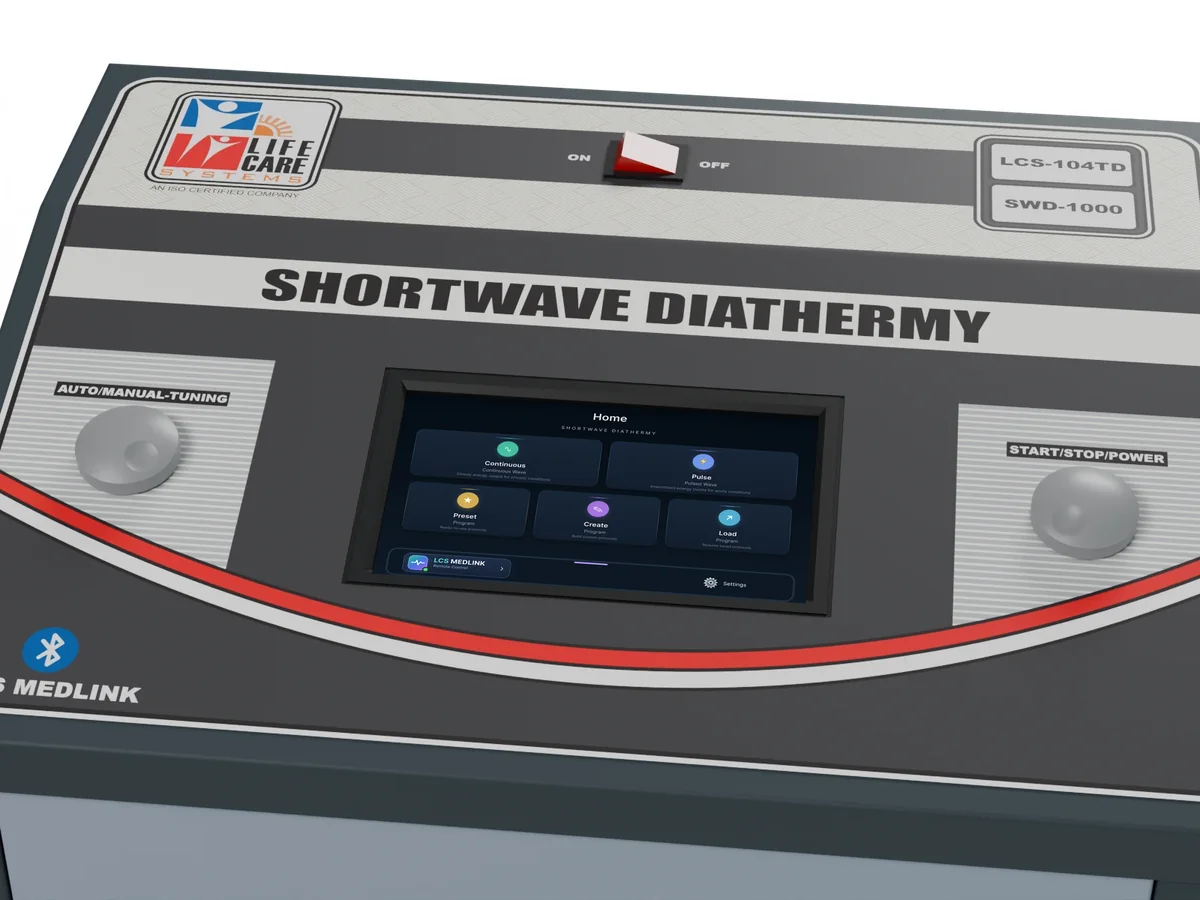

A colour touch display for choosing the mode, setting parameters and watching the session, kept alongside two familiar rotary knobs, one for power and one for tuning mode, so the controls a therapist reaches for by feel are still there.
Pulse frequency from 1 to 800 Hz in 1 Hz steps (1 to 200 Hz on the LCS-103D), with pulse width adjustable from 20 to 400 µs. Far finer control over mean power and thermal load, from acute post-surgical work to chronic musculoskeletal cases.
Automatic impedance matching tunes the output to the patient circuit for you, and manual tuning stays available whenever the therapist prefers to set it by hand.
Run the machine from an Android phone over an encrypted Bluetooth link, or from its own panel: the same interface either way.
Condition-mapped programs for sciatica, frozen shoulder, knee osteoarthritis, low back pain and more, each with its indications and an electrode placement diagram.
Every patient gets a profile with a QR code for instant look-up. Pain scores before and after each session are charted, so recovery is measured, not remembered.
Generate a PDF of a patient's sessions, parameters delivered and pain reduction, to share with the patient or the referring doctor.
Firmware updates arrive wirelessly through the app. New features and therapy programs reach your unit without a service visit.
Both deliver the same clinical output. The LCS-104TD adds the controls, range and connectivity a busy clinic notices every day.
| Feature | LCS-103D | New LCS-104TD |
|---|---|---|
| Output (continuous / pulsed) | 500 W / 1000 W | 500 W / 1000 W |
| RF frequency | 27.12 MHz | 27.12 MHz |
| Display | Seven-segment digital + analog meters | 7-inch colour touch screen + 2 rotary knobs |
| Tuning | Manual | Auto + manual, selectable |
| Pulsed frequency | 1–200 Hz | 1–800 Hz, in 1 Hz steps |
| Pulse width | – | 20–400 µs, in 1 µs steps |
| Preset programs | – | 100, with placement diagrams + 100 custom |
| Phone app control | – | LCS MedLink (Android, Bluetooth) |
| Patient records & reports | – | Pain tracking + PDF reports |
| Firmware updates | – | Over the air, via the app |
| Timer | 1–99 min | 1–99 min |

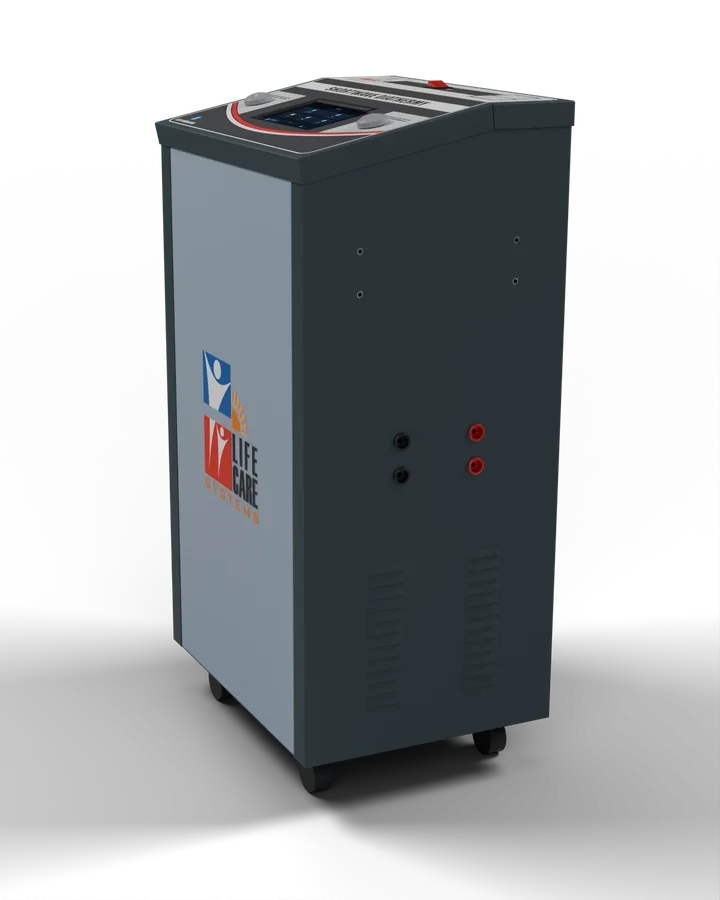

| Electrodes included | Pad & disc | Pad & disc |
LCS MedLink connects to the LCS-104TD over an encrypted Bluetooth link. Start a session, adjust power and filament while it runs, or pick from 100 condition-mapped protocols, each with its indications and an electrode placement diagram.
Every session is logged against the patient automatically, with pain scores before and after, so recovery can be charted and shared as a PDF report.
A complete tour of the LCS-104TD: the touch screen, auto and manual tuning, continuous and pulsed modes, preset programs and remote control from LCS MedLink.
Ask for a quotation and a live demonstration. We supply clinics, hospitals and distributors across India and in more than 40 countries, with export documentation and after-sales support included.
Phone: +91-9654875195
Email: sales@lcsindia.com
